Tunze DOC Skimmer 9430

Beskrivelse

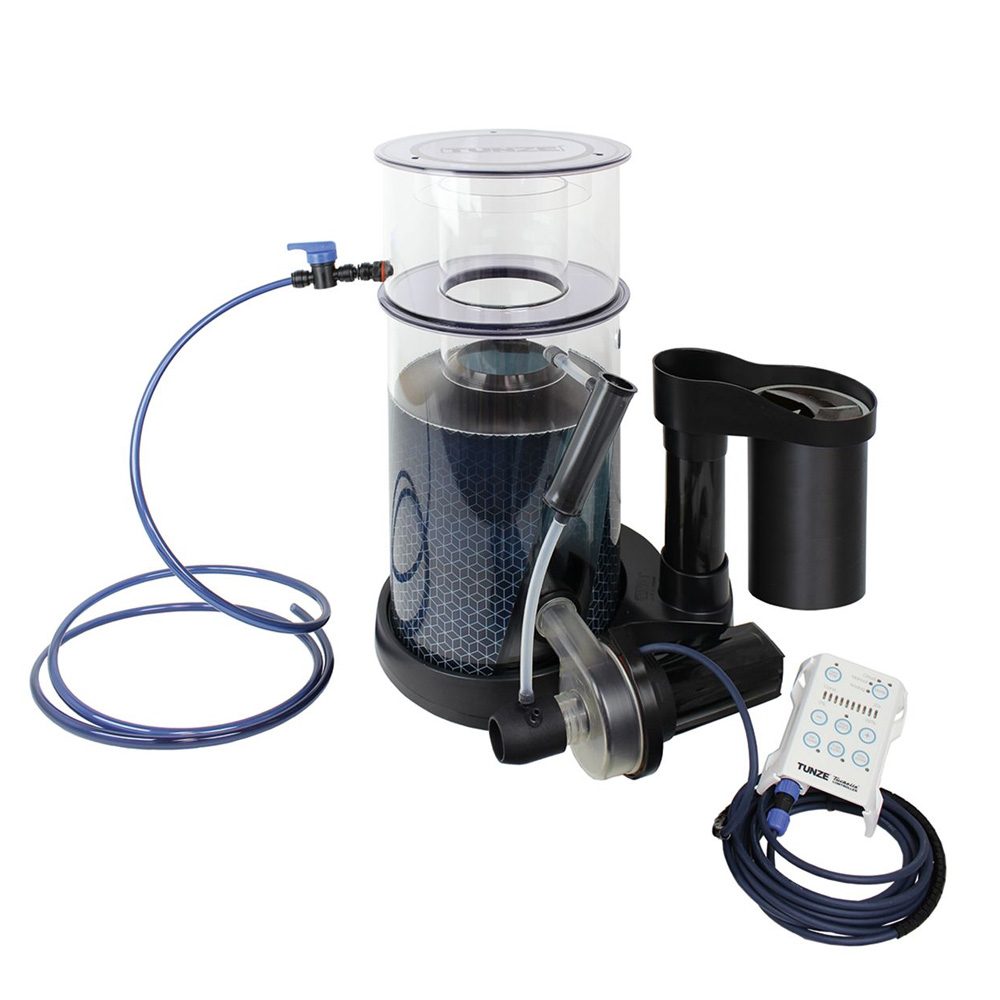

Tunze DOC Skimmer 9430 – premium protein skimmer for large reef systems

If you want maximum skimming performance without your fish room sounding like a machine shop, the Tunze DOC Skimmer 9430 is a true “set-and-forget” option. The skimmer is designed for large saltwater systems and is recommended (depending on nutrient load) for aquariums from 700 to 3,500 liters, with separate recommendations for SPS, mixed reef, and fish-dominant systems.

Why the 9430 is a favorite in large setups

• Magnetic bearing = extremely quiet operation: The pump is mounted on magnetic bearings that minimize friction and reduce “humming” compared to traditional bearing designs.

• Completely shaftless design: No ceramic/metal shaft as a common wear point — and no metal parts in the area in contact with water. This supports robust, long-term operation.

• Set it once — stays stable: The water level is regulated by a hydraulically tuned level system without manual valves and without moving parts, designed to remain stable over time.

• Ozone connection as standard: Ozone-resistant nozzle and a dedicated ozone connection via the air intake — ready with no modifications.

• TUNZE® HUB-ready, but not app-dependent: Can be integrated into the HUB ecosystem, but can also run fully “offline” via the controller.

• Easy to clean: The pump is mounted externally on the housing, and the entire unit can be removed in one go — without loose hoses or vibrating mounts.

• 5-year warranty and Made in Germany (developed and manufactured in Penzberg).

Key specifications

• Recommended aquarium size (depending on nutrient load): 700–3,500 L

  • SPS: up to 2,000 L / Mixed reef: up to 2,800 L / Fish & soft corals: up to 3,500 L

• Immersion depth: 10–24 cm (optimal around 15 cm)

• Air intake: up to 2,000 L/h

• Power consumption: max 48 W

• Collection cup: 2 liters

• Dimensions: 36 x 36 x 50 cm

  • Requires approx. 36 x 36 cm sump footprint and a recommended total height of 60 cm for easy servicing.

In short: The Tunze DOC Skimmer 9430 is a premium skimmer for large reef systems, combining high capacity, ultra-quiet technology, and stable long-term performance — with smart details like an ozone connection and easy maintenance.
